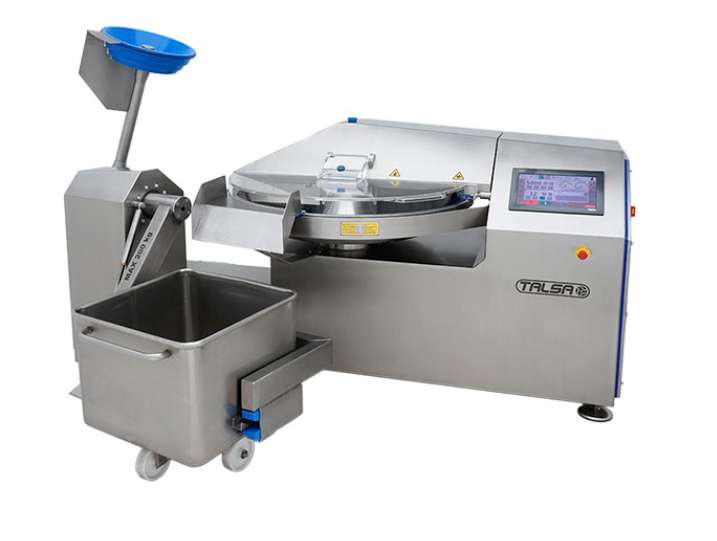

A stainless steel machine with a bucket attached to it.
Digital industrial bowl cutters / choppers k135s suprem new supreme bowl cutter series quality innovation performance

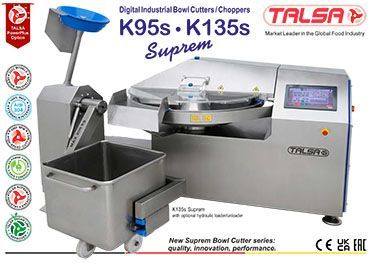

A picture of a machine that looks like a bowl cutter.

AT WORK

  • Very high cutting speed, fully variable from 500 up to 5000 rpm.


  • Slow mixing speed, variable from 50 to 500 rpm, forward and reverse.


  • German BE-Maschinenmesser knives, made of special high-resistance KUT steel.


  • Minimum space between all knives and the bowl thanks to its large central diameter.


  • Motorized stainless steel knife lid for effortless lifting and lowering.



  • Removable friction seal between lid and bowl, equipped with self-adjusting springs.
A close up of a machine with a blue hose attached to it.
  • Transparent noise protection cover with CE safety clearance, reducing the knife speed when opening and returning to the previous speed when closing.
It is a vegan line approved logo.
  • Excellent professional results can be achieved with meat, vegetables, vegan/vegetarian food, fish, and special dough.

CUTTING MECHANICS

  • Very high cutting speed, fully variable from 500 up to 5000 rpm.


  • Removable 6-knife head and compensating rings for use with 3.


  • Large diameter knife shaft, very reliable, with advanced quality bearings and seals for high rpm, with a 2-year guarantee.


  • Four on-screen buttons for direct selection of knife and bowl speeds, freely configurable.


  • Lower cavity of stainless steel lid with removable separation plate to expand or compress the workspace of the knives.


  • New vibration reduction technology at high revs, developed in collaboration with UPV Polytechnic University.



  • Hygienic labyrinth in knife head to prevent dough from entering the shaft.
A high speed cutting logo with a red blade in a circle.

OPTIONAL

  • Hydraulic bin loader and hydraulic unloader arm with motorized extracting disc, featuring variable speed from 70 to 200 rpm.



  • Manual unloader arm with motorized extracting disc, also offering variable speed from 70 to 200 rpm.

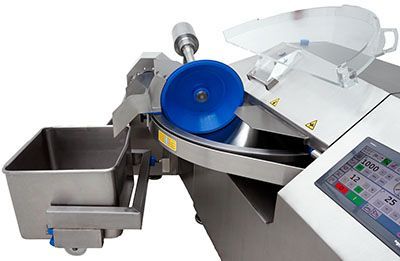

A stainless steel machine with a blue wheel on it.

STAINLESS STEEL FRAME

  • Very robust construction, a heavy machine weighing between 2300 and 2600 kg.



  • Completely stainless: the entire frame, external and internal components, are made of AISI304 stainless steel, as well as all possible hardware and components.


  • Very solid, 220 kg cast stainless steel bowl, with an outer rim to prevent liquids or dough from spilling.


  • Low bowl height for more comfortable use.


  • Adjustable stainless steel machine feet, designed to be non-slip and absorb vibrations.
It is a stamp that says `` 100 % inox external & internal ''.

CUTTING MECHANICS

  • Machine body surfaces feature drainage slopes to avoid stagnant water.


  • Polished surfaces without corners, featuring a CE radius to facilitate cleaning and comply with hygiene standards.


  • Removable bowl rim scraper included.


  • Stainless steel bowl equipped with a drain plug.


  • Double-sealed waterproof access panels provided.


  • Closed machine bottom.

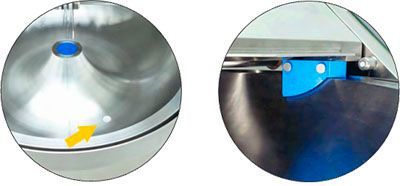

A close up of a stainless steel bowl and a close up of a stainless steel bowl.
A stainless steel machine with a blue wheel on it.

ELECTRICS AND ELECTRONICS

  • Powerful motors for quickly processing the most compact frozen dough.


  • Two knife-motor powers available.


  • Soft start and stop of knives and bowl facilitated by two-speed drives.


  • High energy efficiency class IE3, utilizing high-performance ABB motors and last-generation drives.


  • Automatic knife safety stop feature included.


  • Thermal motor protections provided.


  • Fast and sensitive digital thermometer, with a sensor extended into the internal cavity of the lid.


  • Folding internal electric panel for easy access, equipped with a temperature-controlled cooling system.


  • Electronic/electric components from top brands such as Schneider Electric and ABB.
The schneider electric logo is powered by abb

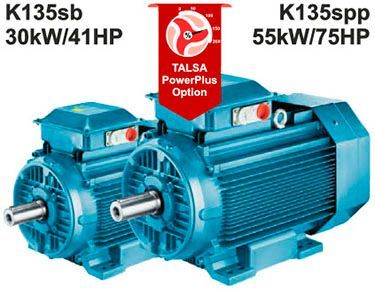

Two blue motors with a red banner that says talsa powerplus option

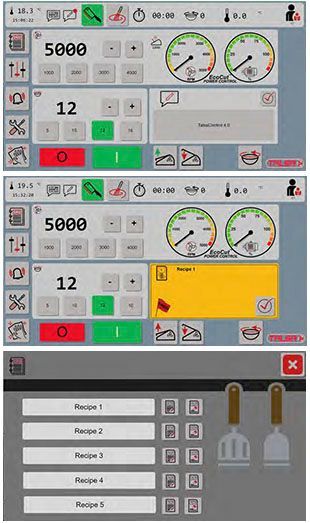

Three screenshots of a computer screen with buttons and gauges

SOFTWARE AND EXTERNAL CONNECTIONS

  • Control panel equipped with a large 15” Schneider Electric digital touchscreen, displaying all information simultaneously and in large size.


  • Extensive information provided on controls, alarms, errors, and diagnostics.


  • Very advanced and practical software with numerous automatic stop options, making it intuitive and easy to use.


  • Interactive recipes available, which can be stored and executed directly on the machine’s screen.


  • New Talsa EcoCut Power Control feature allows determination of the machine power required to achieve desired cutting results at any time during the process.


  • Industry 4.0 digital solutions offered for maintenance, process integration, and custom solutions.


  • Remote Service and Support access available over a secure internet connection (router/ethernet or mobile phone).

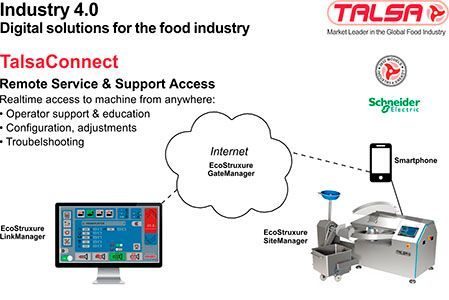

A diagram of industry 4.0 digital solutions for the food industry

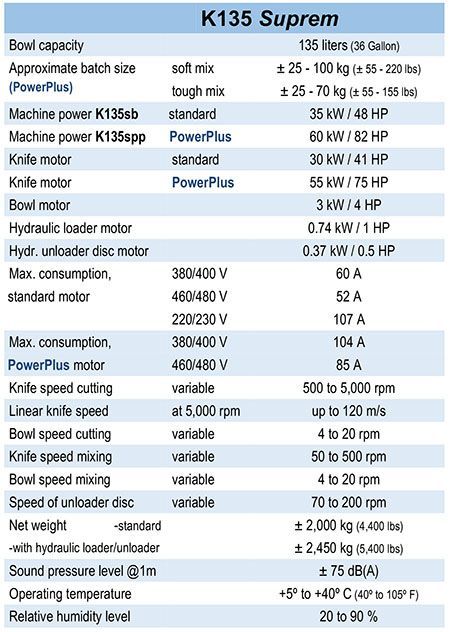

A table of specifications for a machine called k135 suprem

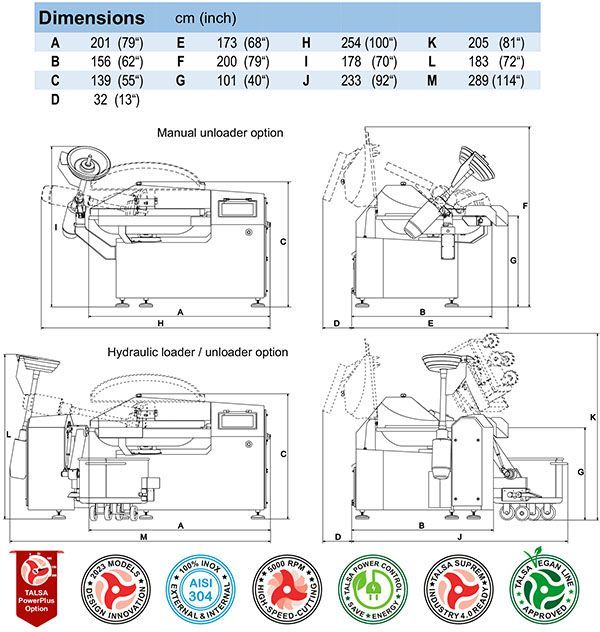

A diagram showing the dimensions of a machine

Important advice: Always opt for a large bowl cutter capacity and power to accommodate future growth in production. Available Talsa capacities include 15, 30, 55, 95, 135, and 200 liters.
